Soundcard RME Fireface 800

Mô tả:

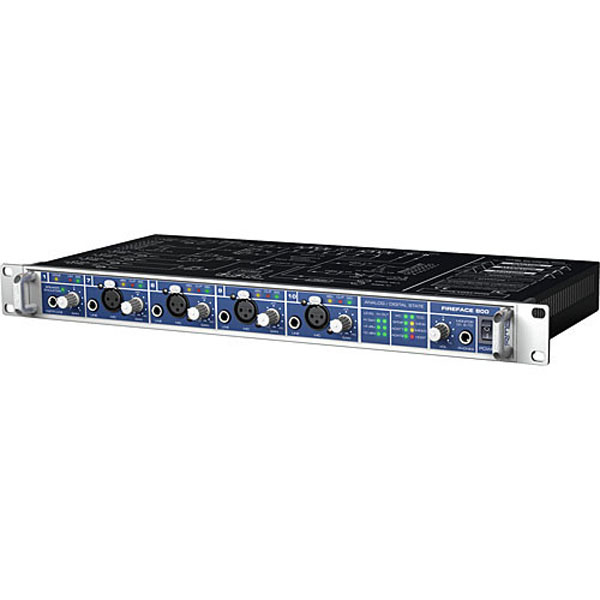

The Fireface 800 from RME is a multi-channel FireWire audio interface for use both the Mac and Windows. Up to sixteen analog sources can be connected at one time, which include four microphone preamps with phantom power available. Dual ADAT ports add further connectivity by inputting or outputting up to sixteen digital channels from the correct digital sources. The latest "plug and play" technology guarantees a simple installation, even for the inexperienced user.

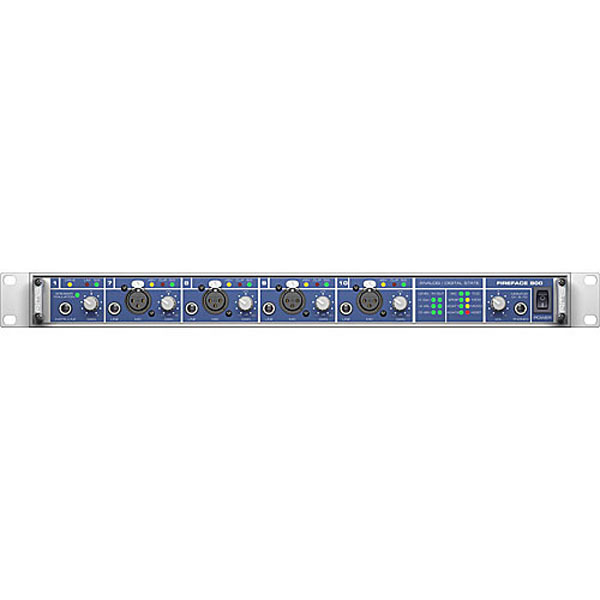

A front-sided headphone output delivers a high volume, adequate enough for low-impedance headphones, and represents the playback channels 9/10. The headphone output can be used directly with ASIO Direct Monitoring. The Fireface 800 also provides a Hi-Z instrument input for the use of guitar and bass. A soft limiter, a drive circuit and a speaker emulation filter can be used to further enhance the sound of these instruments.

Tính năng:

All Inputs and Outputs Available Simultaneously: The instrument input on the front panel can be used either instead of the line input on the back, or together with it. Even the 1/4" TRS jack and the XLR input of the microphone preamp can be used simultaneously. In this way, up to 35 signal sources can be connected to the unit and recorded onto 28 separate tracks.

Highly Flexible Internal Routing: The included DSP-based mixer allows all inputs and outputs to be freely mixed, distributed and routed. Up to 14 completely independent stereo sub-mixes are possible. Every single sub-mix channel can be recorded directly, without the need of external cable loops.

Multiple Functions: Internal flash memory provides for all settings (including the mixer,) to be recalled during boot-up. After making any desired settings, the device can also function stand-alone, without needing the computer. In this mode, uses for the unit include a sub-mixer, A/D and D/A-converter, headphone mixer, format converter, instrument or microphone preamplifier or monitoring mixer.

Accurate Sync Reference: The Fireface 800 is equipped with SteadyClock, the company's sync and clock technology that allows the unit to function as a sync reference for a whole studio. SteadyClock refreshes clock signals, removes jitter and provides optimal conversion quality, irrespective of the quality of the reference clock.

Optimized FireWire Functionality: The Fireface 800 uses RME's own FireWire technology, heavily optimized for audio purposes. Lowest overhead, special hardware adaptations and a new low latency buffer concept enable latency change on the fly, latencies down to one millisecond and immediate reaction on changes of sample rate. Further enhancements and optimizations are easily added by performing a flash update.

The interface has a second FireWire 800 port for hub functionality, bi-lingual mode for full FireWire 400 compatibility over the 800 ports, and an additional FireWire 400 port. Several units can be used in parallel and or in series on a single FireWire port.

Thông số kỹ thuật:

Converters	24-bit
Sample Rates	Internally: 32, 44.1, 48, 64, 88.2 kHz, 96 kHz, 128, 176.4 and 192kHz Externally: 28kHz to 200kHz

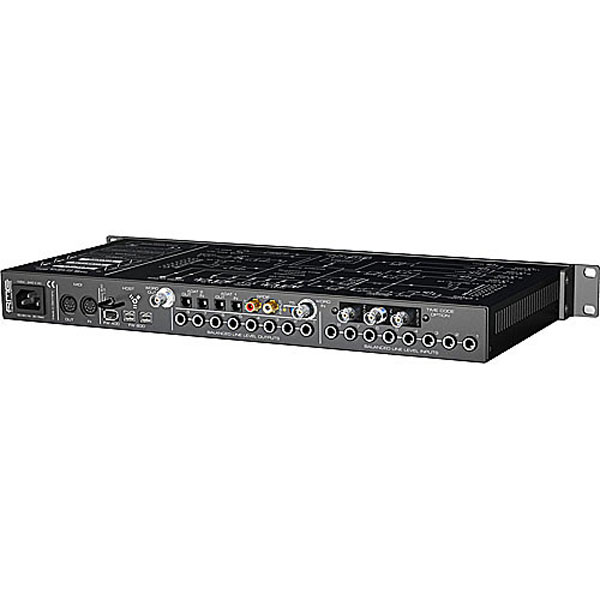

Analog Input	4 x XLR/4 x 1/4" TRS phone (front) 8 x 1/4" TRS 1/4" phone, software controlled switching of reference levels -10dBV, +4dBu or HiGain (rear) 1 x 1/4" TS phone
Analog Output	8 x 1/4" TRS phone, servo-balanced, DC-coupled 1 x 1/4" TRS unbalanced
Digital Input	2 x ADAT optical or S/PDIF optical 1 x RCA S/PDIF coaxial (AES/EBU compatible)
Digital Output	2 x ADAT optical or S/PDIF optical 1 x RCA S/PDIF coaxial (AES/EBU compatible)
MIDI In/Out	Yes
Sync In/Out	2 x BNC WordClock S/PDIF
Headphone Output	Yes. Headphone output can be used directly with ASIO direct monitoring
THD + N	AD: < -104dB (< 0.00063%) DA: < -100dB (< 0.001%)
Dynamic Range	AD: 109dB RMS unweighted, 112dBA DA: 116dB RMS unweighted, 119dBA (unmuted)
Frequency Response	-0.1dB: 5Hz to 21.5kHz @ 48kHz -0.5 dB: <5Hz to 43.5kHz @ 96kHz -1.0 dB: <5Hz to 70kHz @ 192kHz
System Requirements	Drivers: Mac: OS X 10.3 or up Core Audio Core MIDI Up to three units operational simultaneously PC: Windows 2000 SP4 or XP ASIO multi-client operation of WDM, MME, GSIF 2.0 and ASIO 2.0. WDM (DirectSound) with stereo and multi-channel support Up to three units operational simultaneously Fully hot-pluggable
Specialties	The unit has a second port for hub functionality, bi-lingual mode for full FireWire 400 compatibility and an additional FireWire 400 port
